Vacuum Bagging Films in Composite Manufacturing: Monolayer vs Multilayer Nylon – Uses, Performance & Application Benefits
Vacuum bagging film plays a critical role in composite manufacturing. It is a high-strength, thermoplastic film, typically made from nylon, that creates a gas-tight barrier around the laminate. This allows vacuum pressure to compact the part during cure, ensuring tight consolidation and reducing void content.
The choice of vacuum bagging film affects everything from part quality to cycle efficiency. Two key categories dominate the market: monolayer nylon films and multilayer nylon/polymer films. Understanding the strengths and ideal use cases of each helps manufacturers maintain performance standards and cost control.
_________________________________________________________________________________________
🔹 Monolayer Nylon Bagging Films
Monolayer bagging films are produced from a single nylon resin. They are known for simplicity, thermal resistance, and superior mechanical properties.
Key Characteristics:
• High Temperature Capability

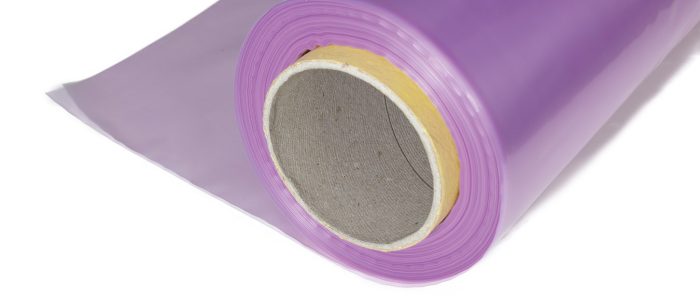

Both VACflexUltraV and VACflexP handle elevated cure cycles up to 204 °C (400 °F). This makes them suitable for aerospace and motorsport autoclave applications, especially when curing advanced prepregs.
• Puncture Resistance & Elongation
These films deliver high stretch and conformability (elongation approx. 370%) which allows them to adapt to complex geometries without bridging or tearing. This ensures full vacuum coverage and part integrity under high pressure.
• Resin Compatibility
VACflexUltraV is phenolic-resistant, offering chemical stability in aggressive resin systems used in fire-retardant or heat-resistant composites.
Typical Applications:
• Autoclave-cured F1 components (bodywork, aero ducts)
• Aerospace prepreg layups (wing skins, control surfaces)
• Structural parts requiring consistent vacuum integrity
_________________________________________________________________________________________
🔹 Multilayer Nylon Bagging Films
Multilayer films combine two or more polymer layers to improve reliability, especially over large or complex moulds.
Key Characteristics:
• Defect Redundancy
Layered construction prevents film failure from localised imperfections. If one layer has a micro-pinhole, the others maintain the vacuum seal, critical in large-format parts.
• Enhanced Strength & Heat Tolerance
VACtiteO, for example, has a working temperature of 170 °C and exhibits greater tear resistance and strength through lamination. This allows for secure sealing without compromising flexibility.
• Surface Versatility
The flexibility of VACtiteO with an elongation at break at 400% in both TD and MD enables full conformance on challenging layups, making it ideal for laminated glass, curved automotive panels, and marine structures.
Typical Applications:
• Vacuum bonding of laminated safety glass
• Large-area automotive composite panels
• Wind energy and architectural laminates
• Cost-effective replacement for monolayer films in lower-temp cycles
_________________________________________________________________________________________
🔧 Application Summary: Which Film When?
| Application |
Recommended Film Type |
Why? |
Autoclave aerospace/motorsport |
VACflexUltraV / VACflexP |
High temp, high elongation, strong seal |
Laminated glass production |
VACtiteO |
Flexibility, size coverage, cost-effective |
Large marine/wind turbine layups |
VACtiteO |
Durable, multi-layer protection |
Parts with phenolic resins |
VACflexUltraV |
Resin compatibility, thermal resistance |
_________________________________________________________________________________________
